| Part Number | Forward/reverse channels | Data rate (Max) (Mbps) | VCCx (V) | Prop. Delay (ns) | Current/channel Typ (mA) | Default output | CMTI (kV/μs) Min | Operating Temp（℃) | VISO(Vrms) | Package Group | Packing/QTY | Download |
|---|---|---|---|---|---|---|---|---|---|---|---|---|

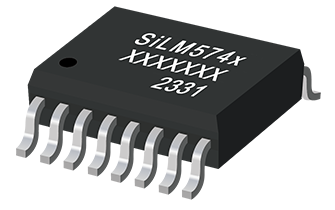

| SiLM574x系列（高速四通道数字（zì）隔离器） | 下载（zǎi） | |||||||||||
| SiLM5740CG-DG | 4 forward / 0 reverse | 100 | 2.25~5.5 | 12 | 1.5 | High | 100 | -40 ~ 125 | 5000 | SOP16W | Reel/1500 | |
| SiLM5740FCG-DG | 4 forward / 0 reverse | 100 | 2.25~5.5 | 12 | 1.5 | Low | 100 | -40 ~ 125 | 5000 | SOP16W | Reel/1500 | |
| SiLM5741CG-DG | 3 forward /1 reverse | 100 | 2.25~5.5 | 12 | 1.5 | High | 100 | -40 ~ 125 | 5000 | SOP16W | Reel/1500 | |
| SiLM5741FCG-DG | 3 forward /1 reverse | 100 | 2.25~5.5 | 12 | 1.5 | Low | 100 | -40 ~ 125 | 5000 | SOP16W | Reel/1500 | |
| SiLM5742CG-DG | 2 forward /2 reverse | 100 | 2.25~5.5 | 12 | 1.5 | High | 100 | -40 ~ 125 | 5000 | SOP16W | Reel/1500 | |
| SiLM5742FCG-DG | 2 forward /2 reverse | 100 | 2.25~5.5 | 12 | 1.5 | Low | 100 | -40 ~ 125 | 5000 | SOP16W | Reel/1500 | |
| SiLM5740CG-AQ | 4 forward / 0 reverse | 100 | 2.25~5.5 | 12 | 1.5 | High | 100 | -40 ~ 125 | 5000 | SOP16W | Reel/1500 | |
| SiLM5740FCG-AQ | 4 forward / 0 reverse | 100 | 2.25~5.5 | 12 | 1.5 | Low | 100 | -40 ~ 125 | 5000 | SOP16W | Reel/1500 | |
| SiLM5741CG-AQ | 3 forward /1 reverse | 100 | 2.25~5.5 | 12 | 1.5 | High | 100 | -40 ~ 125 | 5000 | SOP16W | Reel/1500 | |
| SiLM5741FCG-AQ | 3 forward /1 reverse | 100 | 2.25~5.5 | 12 | 1.5 | Low | 100 | -40 ~ 125 | 5000 | SOP16W | Reel/1500 | |
| SiLM5742CG-AQ | 2 forward /2 reverse | 100 | 2.25~5.5 | 12 | 1.5 | High | 100 | -40 ~ 125 | 5000 | SOP16W | Reel/1500 | |
| SiLM5742FCG-AQ | 2 forward /2 reverse | 100 | 2.25~5.5 | 12 | 1.5 | Low | 100 | -40 ~ 125 | 5000 | SOP16W | Reel/1500 | |
